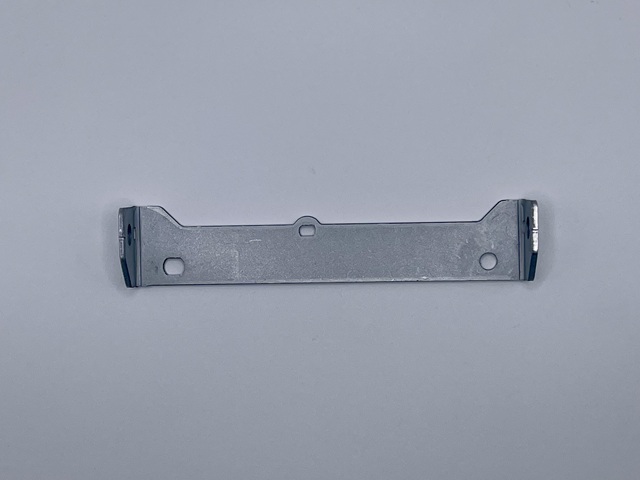

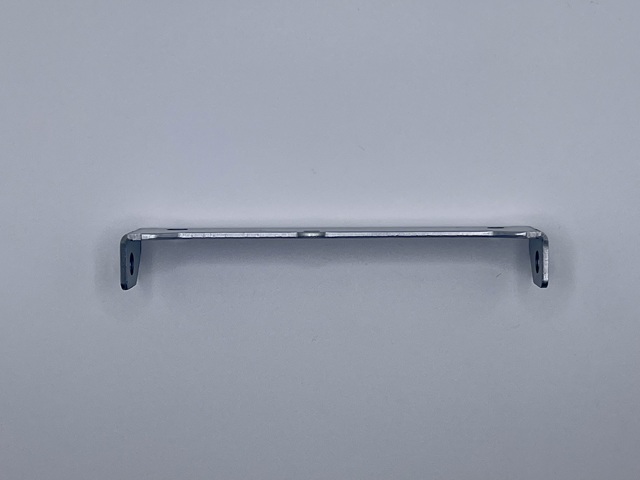

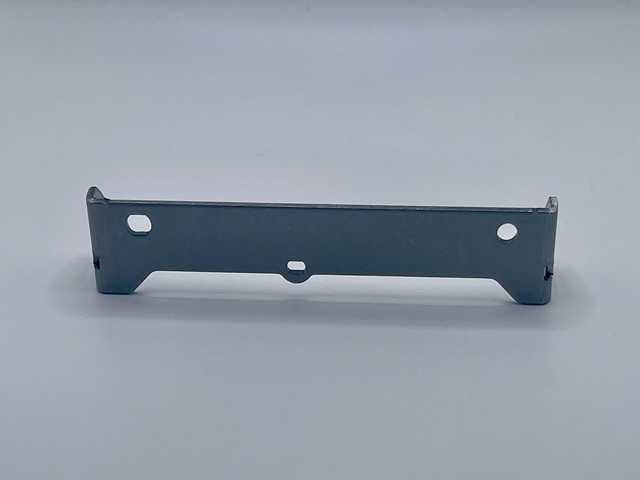

Feed adjusting shaft holder
Progressive die press parts
Product Name
Feed adjusting shaft holder
Material
SECC
Plate thickness
1.6mm
Process
Progressive die stamping → Dimension inspection with pin gauge → Visual inspection → Pre-shipment inspection → Packaging
Outsourced processes
None
Monthly production quantity
35,000 pcs
This part is produced using a progressive die for high-volume output, requiring high precision at each station to consistently maintain tight tolerances on key holes and dimensions across many lots.
Quality control is also fairly complex, with multiple measurement points that must be checked simultaneously using dedicated pin gauges.
Given the high production volume, the die is prone to wear over time, so regular maintenance and monitoring are essential to prevent dimensional deviation.
