Core frame
Industrial machinery partsPrecision pressed parts
Product Name
Core frame
Material
SPCC
Plate thickness
2.6mm
Process
Stamping → Vibratory deburring → Plating → 100% dimension inspection (2.6) → Pre-shipment inspection → Packaging
Outsourced processes
Plating
Monthly production quantity
20,000 pcs

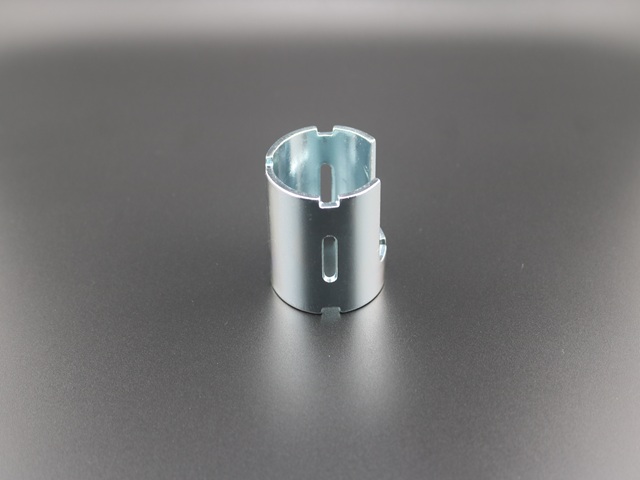

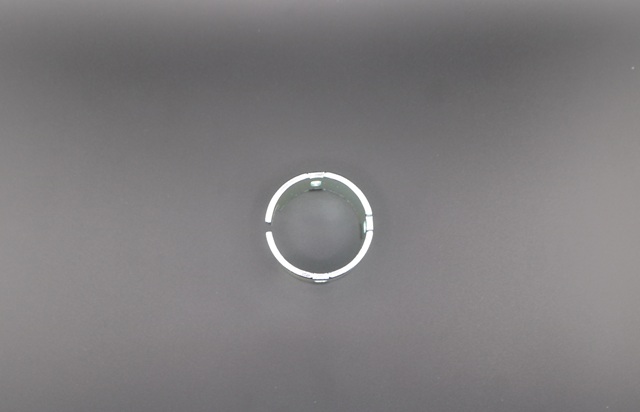

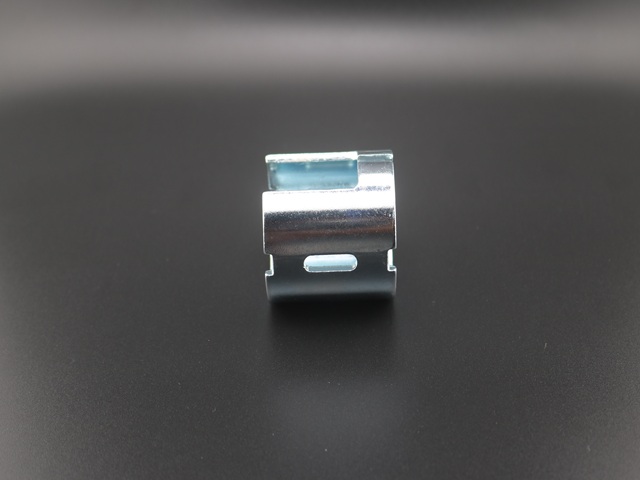

This part is a ring-shaped core frame with multiple grooves and slots that must be precisely stamped to properly fit with the two internal cores — assembly must ensure the cores don’t fall out and the fitting clearance meets spec (checked with a Ø20.05 pin gauge).
The 2.6mm thickness directly affects the magnetic gap during assembly, so it requires 100% inspection at 6 points around the circumference rather than sample checking, needing a dedicated measurement step after plating to account for plating thickness variation.
